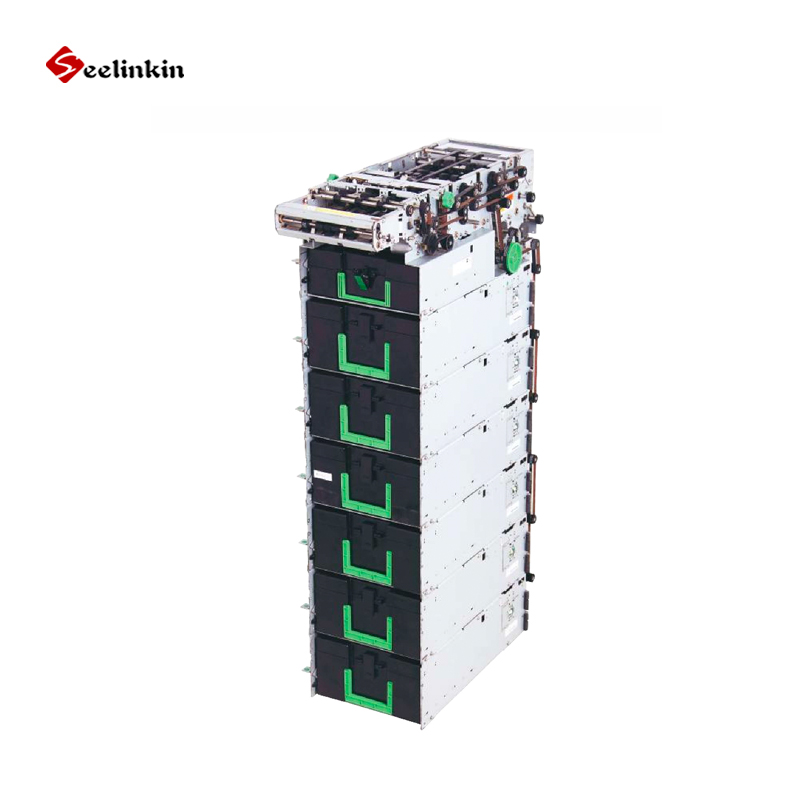

GRG CDM8240N High-Reliability Note Dispenser for ATM
CDM8240N is a market-leading cash dispense module with advanced features, low cost, high reliability, and easy maintenance, ideal for ATMs and self-service applications.
• Advanced functionalities with low ownership cost
• Superior performance and high reliability
• Easy to operate and maintain
• Suitable for ATMs and self-service kiosks
Welcome To Share This Product:

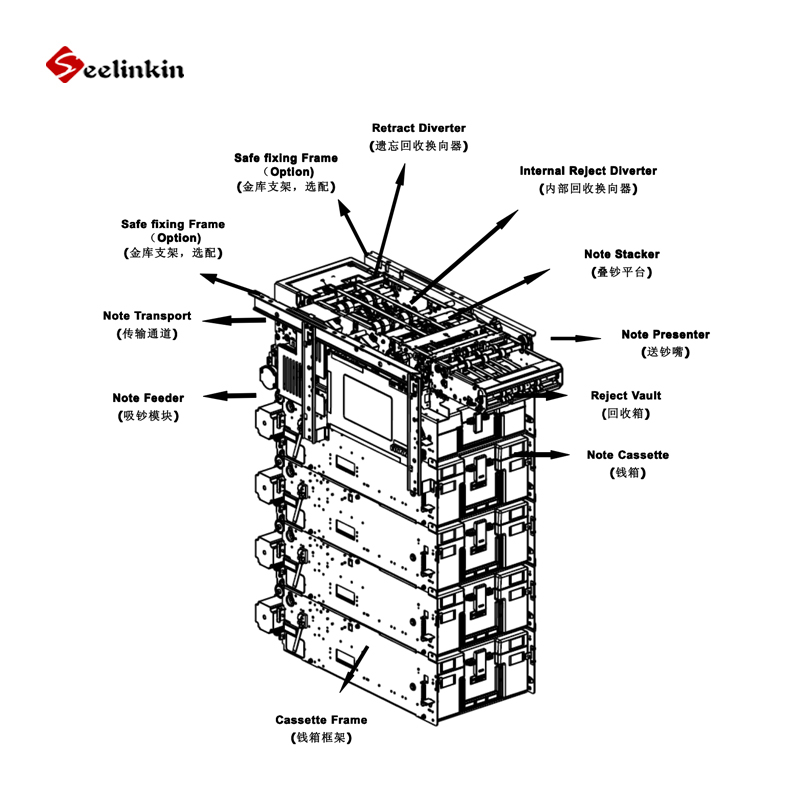

GRG CDM8240N Note Dispenser Description
The CDM8240N cash dispense module, developed by GRGBanking, is a high-reliability note dispenser with full independent intellectual property rights. It combines advanced functionalities with a low cost of ownership, delivering superior performance and high reliability. This module is easy to operate and maintain, making it an ideal solution for ATMs and other self-service applications. As a professional manufacturer, we supply high-quality note dispensers for bulk orders worldwide.
GRG CDM8240N Note Dispenser Parameter
| Parameter Group | Specification |
|---|---|
| General Information | |
| Product Model | GRG CDM8240N |
| Product Name | Cash Dispense Module / Note Dispenser |
| Manufacturer | GRGBanking |
| Performance | |
| Dispensing Method | Friction-type, Bi-directional |
| Banknote Capacity | 2000 notes (standard configuration) |
| Dispensing Speed | ≥ 8 notes/second |
| Banknote Compatibility | |
| Banknote Dimension | Width: 70 – 85 mm; Length: 140 – 165 mm |
| Banknote Thickness | 0.075 – 0.12 mm |
| Banknote Condition | New, slightly worn, or deformed notes |
| Electrical & Interface | |
| Operating Voltage | 24 V DC (±10%) |
| Communication Interface | RS-232 / USB (Optional) |
| Environmental | |
| Operating Temperature | 0°C to +45°C |
| Operating Humidity | 20% to 90% RH (non-condensing) |
| Physical | |
| Module Dimensions (L x W x H) | Approx. 420 x 280 x 360 mm |
| Weight | Approx. 15 kg |
| Reliability & Standards | |
| MTBF (Mean Time Between Failures) | > 200,000 dispensing cycles |
| Compliance | CE, FCC, RoHS |
GRG CDM8240N Note Dispenser Applications
• ATMs: Used for cash withdrawal in automated teller machines.
• Self-service kiosks: For ticketing, payment, and information systems.
• Retail systems: In self-checkout machines for cash dispensing.
• Banking terminals: For cash dispensing in bank branches.
Get Free Quote of GRG CDM8240N Note Dispenser
Contact us for bulk orders and custom solutions!
