Custom Kiosk Hardware Manufacturing in China: A Definitive Guide to Obtaining Accurate Quotations

As global demand for custom kiosk hardware manufacturing accelerates across retail, healthcare, transportation, and hospitality, sourcing custom hardware from leading Chinese manufacturers has become a key strategic move for system integrators and solution providers. Operating from the world’s electronics manufacturing hub in Shenzhen, Shenzhen Seelinkin Intelligent Technology Co., Ltd. stands out as a premier dedicated hardware manufacturer specializing in custom self-service kiosk enclosures, metal fabrication, and component integration.

Obtaining an accurate, transparent, and comprehensive quotation is the crucial first step for any successful international kiosk procurement project. This industry report outlines the structural framework, hardware configuration choices, and evaluation criteria necessary to secure optimal pricing and execution for commercial self-service terminals.

1. Defining Application Scenarios & Core Functional Requirements

Every self-service kiosk hardware build begins with the target operating environment. Hardware requirements vary drastically between high-traffic outdoor transit hubs and indoor boutique hotel lobbies. Clearly defining the operational scenario enables Seelinkin’s engineering team to select appropriate materials, IP ratings, and peripheral configurations.

Primary Application Profiles & Hardware Characteristics

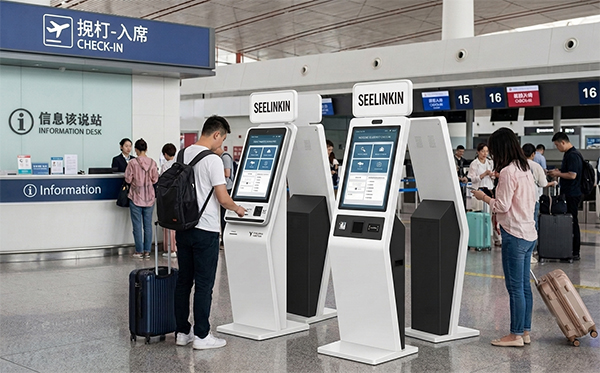

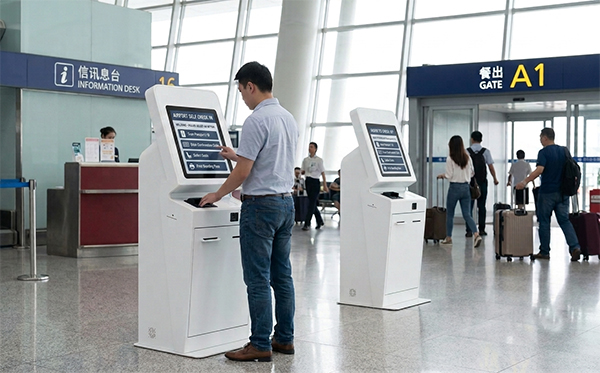

• Airport & Transit Check-in Kiosks: Require heavy-duty steel chassis, integrated passport scanners, ICAO-compliant document readers, dual thermal boarding pass/bag tag printers, and strict physical security locks.

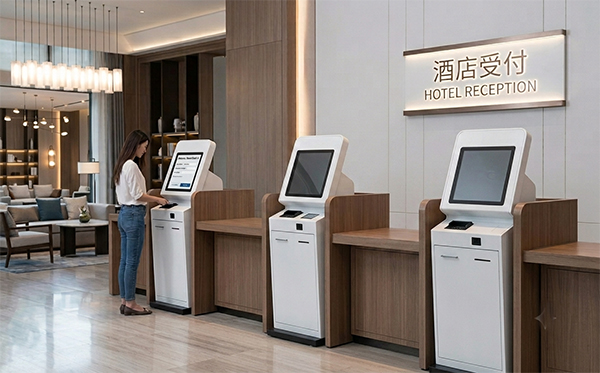

• Hotel Self Check-in Terminals: Focus on sleek aesthetic design, motor-driven ID/passport scanners, keycard encoder/dispenser modules, and multi-option payment terminals.

• Bill Payment & Cash Handling Kiosks: Mandate high-security safe boxes (UL/CEN standards), cash acceptors, note dispensers, coin hoppers, anti-skimming EMV card readers, and receipt printers.

• Ticketing & Entertainment Terminals: Optimized for fast user throughput, features industrial-grade capacitive touchscreens, barcode/QR scanners, and ruggedized high-speed ticket printers.

• Restaurant Self-Ordering Terminals: Require slim pedestal or wall-mount form factors, splash-resistant screen surfaces, receipt printers, and integrated contactless payment (NFC).

Kiosk Application Matrix

Kiosk Application Type	Core Component Requirements	Primary Operational Benefit	Typical Enclosure Type
Airport Check-in	Passport Scanner, Bag Tag Printer, Heavy Duty Lock	Accelerates passenger flow & cuts queue times	Floor-standing Heavy Duty
Hotel Self Check-in	ID Reader, Keycard Dispenser, EMV POS Module	24/7 guest check-in without front desk staff	Slim Floor-standing / Desktop
Bill Payment Kiosk	Cash Acceptor/Dispenser, Receipt Printer, EMV Reader	Reduces cash handling costs & labor overhead	Secure Floor-standing Safe Box
Ticketing Kiosk	2D Barcode Scanner, High-Speed Printer, NFC	Instant ticket issuing & access control	Wall-Mounted or Pedestal
Restaurant Self-Order	21.5″-32″ Touchscreen, NFC, Thermal Printer	Increases average order value & speed of service	Wall-Mount / Dual-Screen

2. Key Kiosk Hardware Configurations & Modular Components

Hardware selection directly governs production costs, product durability, and final end-user experience. System integrators must provide precise technical specifications for each module to avoid quotation revisions.

A. Display Panel & Touch Interface

Seelinkin supports commercial and industrial display sizes ranging from 15.6 inches to 32 inches (and up to 55 inches for digital signage). Touch technology choices include:

• Projected Capacitive (PCAP) Touch: Multi-touch support (10 points), smooth glass surface, high transparency, ideal for indoor retail, hotels, and payment terminals.

• Surface Acoustic Wave / Resistive Touch: Selected for specific heavy industrial or high-vibration applications.

• Vandal-Proof Tempered Glass: 3mm to 6mm IK08/IK10 rated safety glass for public space protection.

B. Peripherals & Payment Modules

Hardware Module	Technical Options / Brands	Integration Consideration
Printers	Epson, Custom, Zebra (58mm/80mm Thermal, Auto-cutter)	Paper roll diameter capacity & jam-free exit design
Scanners	Honeywell, Newland (1D/2D Barcode, QR, OCR Passport)	Fixed-mount angle, illumination, and scan speed
Payment Devices	Verifone, Pax, Ingenico EMV Card Readers, NFC Readers	PCI-PTS compliance, physical mounting brackets
Cash Modules	CashCode, ITL, MEI Note Acceptors & Dispensers	Security safe thickness (1.5mm – 3.0mm steel)
Security Camera	Wide-angle HD USB Camera, Biometric Face Rec Camera	Lens position, lighting bezel, privacy compliance

Typical Kiosk Cost Structure Breakdown (Hardware BOM)

• Enclosure & Metal Work: 30%

• Display & Touch Screen: 25%

• Payment & Cash Modules: 25%

• Industrial Board / OS: 12%

• Peripherals & Assembly: 8%

3. Structural Engineering, Materials & OEM/ODM Options

As a direct hardware manufacturer, Shenzhen Seelinkin provides full-stack sheet metal customization. Clients can choose from standard OEM baseline models or opt for custom ODM physical engineering.

Hardware Specialization Notice

Shenzhen Seelinkin Intelligent Technology Co., Ltd. focuses strictly on kiosk hardware manufacturing, sheet metal custom design, and component mounting integration. Seelinkin delivers complete “hardware-ready” units with full API support for system integrators to load their proprietary software applications.

Material & Structure Choices

• Cold-Rolled Steel (SPCC): The industry standard for indoor kiosks, offering high tensile strength, smooth powder coating finish, and cost-efficiency (thickness: 1.5mm – 2.5mm).

• Stainless Steel (SUS304 / SUS316): Recommended for outdoor, coastal, or high-humidity environments requiring corrosion resistance and waterproof sealing (IP65 rating).

• Aluminum Alloy: Used for ultra-lightweight, mobile, or sleek countertop self-order units.

4. Standardized RFQ Checklist for Obtaining Fast & Accurate Quotes

To eliminate communication delays and secure an accurate formal quotation within 24 hours, buyers are encouraged to fill out Seelinkin’s standardized RFQ Checklist before submission.

Self-Service Kiosk Quote Request Checklist

1. Application & Placement: Indoor vs. Outdoor? (If outdoor: IP rating & brightness requirement e.g., 1500+ nits).

2. Screen Specification: Size (15.6″, 21.5″, 27″, 32″), Touch Type (Capacitive PCAP / Non-touch), Resolution.

3. Peripheral Module List: Printer model/width, Scanner type, EMV bracket specifications, Cash acceptor/dispenser capacity.

4. Compute Engine & OS: Windows (Intel Core i3/i5/i7) vs. Android (RK3288/RK3399/RK3568/RK3588).

5. Branding & Cabinet Details: Custom silk-screen logo, RAL color code, wall-mount, countertop, or floor-standing structure.

6. Quantity & Timeline: Sample evaluation quantity (1-5 units) vs. Mass production batch size (100+ units), target delivery date & destination port.

5. Why Partner with Shenzhen Seelinkin Intelligent Technology?

Situated in the heart of Futian, Shenzhen, Seelinkin combines precision manufacturing capabilities with robust international export expertise. By maintaining strict ISO-compliant quality assurance protocols and lean sheet metal assembly lines, Seelinkin delivers hardware solutions deployed across North America, Europe, the Middle East, and Latin America.

• Direct Factory Pricing: Eliminate middleman markup with direct manufacturer sourcing from Shenzhen.

• Rapid Prototyping: Accelerated 3D CAD modeling and prototype sample delivery within 10-15 days.

• Modular Versatility: Engineered for easy maintenance, quick peripheral swapping, and effortless field servicing.
